Uninterrupted and Reliable
•High safety： Centralized exhaust setting,more safety; Flame retardant ABS case (UL94 V-0,optional).
•Easy installation： Front terminal design suited for standard 19"/23" cabinet; Convenient installation and maintenance.
•Good performance： The corrosion resistance of punching plate grid has been improved obviously; CCPP(Continue Casting Punch Plates) tech- nology optimizes discharge performance.
•Reliable design： Self-regulating pressure relief valve with flame arrester.
| Model | Nominal Voltage (V) | Rated Capacity (Ah) | Dimensions(mm) | Weight(kg) | |||
| C10 | Length | Width | Height | Overall Height | |||
| 12NDT100S | 12 | 100 | 395.0 | 108.0 | 274.0 | 287.0 | 30.0 |
| 12NDT150S | 12 | 150 | 550.0 | 125.0 | 272.0 | 283.0 | 47.0 |
| 12NDT170S | 12 | 170 | 550.0 | 125.0 | 272.0 | 283.0 | 50.0 |

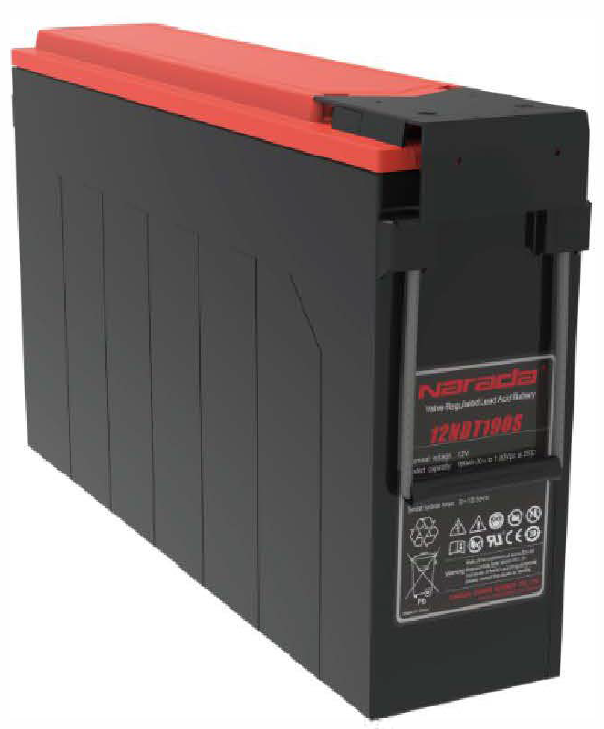

| 12NDT190S | 12 | 190 | 558.0 | 125.0 | 305.0 | 316.0 | 57.5 |
| 12NDT200S | 12 | 200 | 558.0 | 125.0 | 305.0 | 316.0 | 58.0 |
| 12NDT150FT | 12 | 150 | 550.0 | 110.0 | 274.0 | 287.0 | 44.0 |
